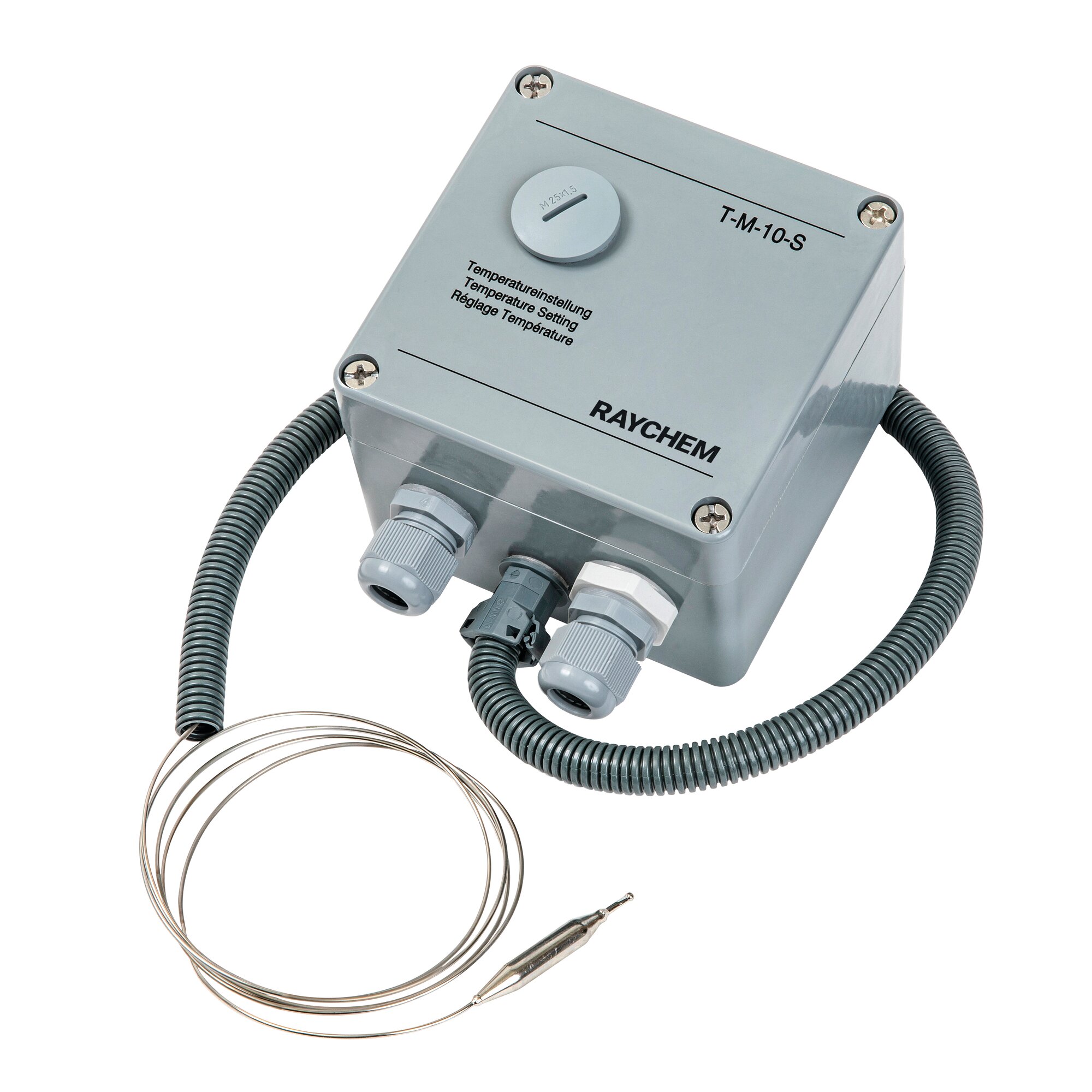

TM10- mekaaninen termostaatti

Raychem T-M-10-S/+x+y on normaalitilan mekaaninen kohteesta mittaava termostaatti lämpökaapeleiden säätöön. Saatavana lämpötila-alueille: 0–50 °C; 0–200 °C; 50–300 °C. Lämpötilan asetusarvoa voidaan säätää koteloa avaamatta kannessa olevan irrotettavan tulpan kautta. Direct connection of the heating cable is possible, switching current capacity is 16 A.

Yksityiskohdat

Ominaisuudet

  • Simple to install and operate: supplied with 2 m long stainless steel fluid filled capillary, 2 cable entries
  • Energy saving, line-sensing electronic control thermostat
  • Adjustable set point in ranges: 0 °C-50 °C; 0 °C-200 °C; 50 °C-300 °C (without opening the enclosure via a removable plug in the lid)
  • Direct switching, maximum current 16 A, 230 VAC: single pole change-over with volt-free contacts, SPDT
  • Lightweight unit, can be pipe mounted using Raychem support brackets or surface mounted

Tekniset tiedot

Current Rating: 16 A
Depth (D): 3.54 in
Height (H): 4.72 in
Material: Glass Fiber Reinforced Polymer
Thermostat Type: Mechanical Thermostat
Width (W): 4.8 in
